The Williams Sound Counter Loop Kit is a complete kit for applications where there is no amplified audio system present. a 12” nylon fabric mat (containing a two-turn loop with resistor) is installed under any non-metal counter, and produces a 36” x 36” magnetic field for T-Coil Equipped hearing aid users. This kit includes everything you need for immediate installation and use:

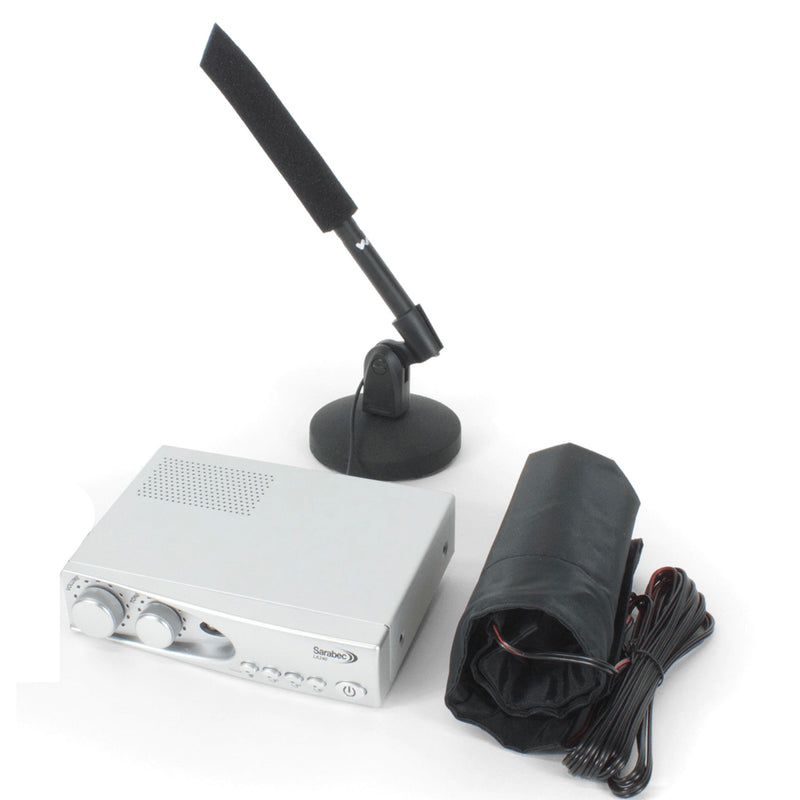

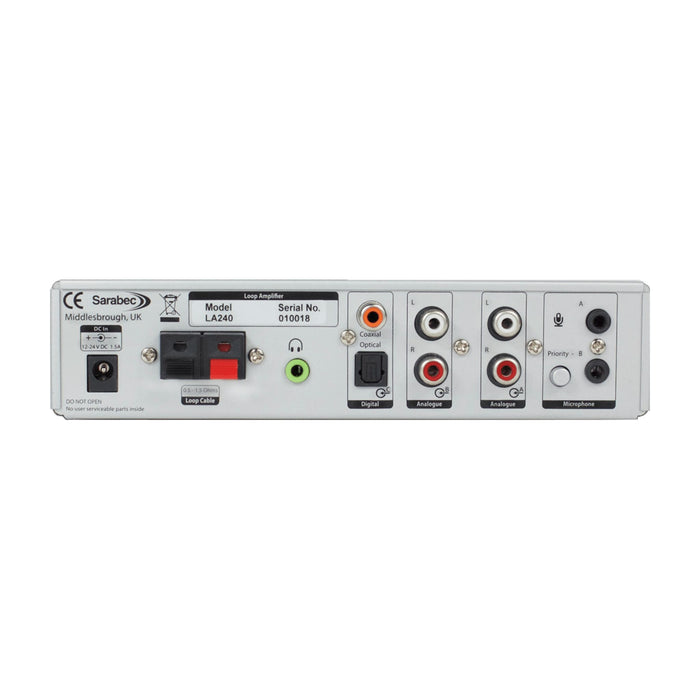

(1) PLA 240 Loop Amplifier (1) PLM 001 Power Loop Mat (1) MIC 027 Directional Microphone (1) STD 005 Microphone Stand
Ideal for counter top hearing assistance applications. Applications include: Kiosks, Pharmacies, Bank Teller Windows, Ticket Windows, or any application where close-range hearing assistance (via hearing aid T-Coil) is desired. Can also be used as a portable system for meetings as a chair loop or other creative applications.
How does this amazing system work? The counter loop is easily installed underneath a non-metal surface such as a counter top or ticket window. The speaker’s voice is picked up by the microphone, amplified by the loop amp, and then transmitted through the loop mat via magnetic field to the t-coil in the listener’s hearing aid.
When used in under-the-counter applications, the mat is mounted in the upper front corner of the cabinet, with half of the mat facing up and half facing forward (see the illustration below). This generates a uniform field about 36” x 36” around the listener, and easily picked up by their hearing aid.
